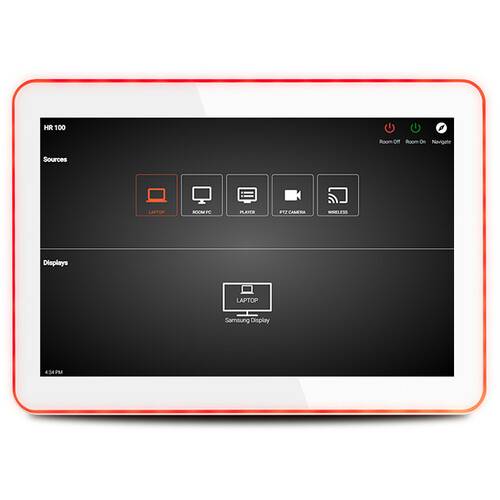

Atlona Velocity All-in-One 10" Touch Panel with Gateway (White)

Add LAN-based room scheduling and device control to your AV meeting and event spaces with this white Velocity All-in-One 10" Touch Panel with Gateway from Atlona. The 10" capacitive multi-touch display panel allows you to control scheduling of your AV rooms, offering room availability status for displaying in a hallway or outside a meeting room.

The capacitive touchscreen panel features a bright, 10" capacitive touchscreen with 500 cd/m² brightness and 1280 x 800 resolution. The Gigabit Ethernet port connects to your LAN, allowing you to configure the panel using a web-based admin GUI, or you can configure the panel using the touchscreen configuration menu. It includes the Velocity gateway system software, which allows it to be automatically detected by the server when added to the network and remotely controlled. It also features speakers that can be configured to play audio feedback for button presses.

It is powered using PoE+ (Power-over-Ethernet), allowing you to control and power the panel using only one connection. The unit can mount on any wall using the included dual purpose glass and wall mount, which is compatible with a 1-gang US wall opening or it can be mounted using its 75mm VESA pattern on the back.

Key Features

Complete AV control system with touch panel and Velocity System gateway combined in a single device

10" touch panel with contemporary, refined styling and aesthetics

Integrated Velocity gateway supports one room of control for up to 24 devices and two scheduling panels

Fast streamlined setup with intuitive, browser-based tool guides users through system configuration and options for pre-configured or custom touch panel user interfaces.

IP-based device control over the Ethernet network reduces components and simplifies cabling

Atlona's VCC line of IP command converters provide compatibility for devices that require control via RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), or relays / sensors (AT-VCC-RELAY-KIT)

Supports QR code BYOD control for touch-free control from the touch panel GUI

Surround bezel LED lighting with lights on the entire outer frame of the touch panel can be configured for room scheduling or AV control and can be easily seen in either landscape or portrait orientation

Capacitive touch screen with 1280 x 800 resolution

Dual-purpose glass and wall mount compatible with one-gang US, UK, and EU openings is included

Standard VESA 75 pattern for compatibility with third-party mounts

Optional AT-VTP-VTM tabletop mounting kit for freestanding placement on a meeting table or lectern

Supports multi-touch and gesture interactions

Configurable audio feedback available for button presses

Gigabit Ethernet port PoE+ for remote power and network connection with a single cable

Applications

Conference Room / Classroom

Ideal for meeting and education spaces that would benefit from a self-contained touch panel AV control system.

Divisible Room

All-in-one AV control and user interface solution for rooms that support multiple configurations via movable walls.

Hospitality / Retail

Allows restaurants, bars, hotels, or retail locations to have all-in-one touch panel control of displays, background music, digital signage, or video walls.
