ATEN 4-Port 10G Optical Output Board for Modular Matrix Switch (Up to 6.2 Miles)

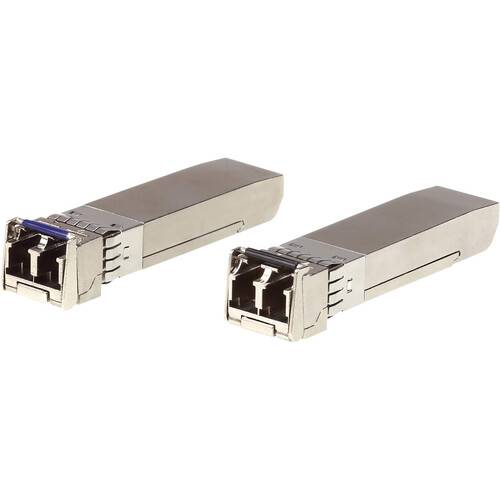

Extend your HDMI transmissions when using the ATEN Modular Matrix Switch with this 4-Port 10G Optical Output Board from ATEN. The board features four bidirectional SFP+ fiber output modules that can extend HDMI video up to 984' via single-mode (SM), LC Duplex fiber. It supports up to DCI 4K60 video with embedded audio, and it can also transmit bidirectional RS-232 and IR signals. Other features include hot-swap capability, EDID management, HDCP 2.2 support, and CEC support.

Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility

Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables

Superior video quality over long-distance transmission up to 4096 x 2160p60 (4:2:0), up to 984' via single-mode (SM), LC Duplex fiber

Scaler features a 4K video scaling function to convert input resolutions to the optimum display resolutions

Seamless Switch features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions

Video Wall allows you to create custom video wall layouts via intuitive web GUI

HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible

Consumer Electronics Control (CEC) support

Bidirectional RS-232 channel allows you to connect to serial terminals or serial devices, such as touchscreens and barcode scanners

Bidirectional IR channel: IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz

EDID Expert selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens

FrameSync prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate

Hot-swappable fiber optic module and I/O boards for easy integration and maintenance
