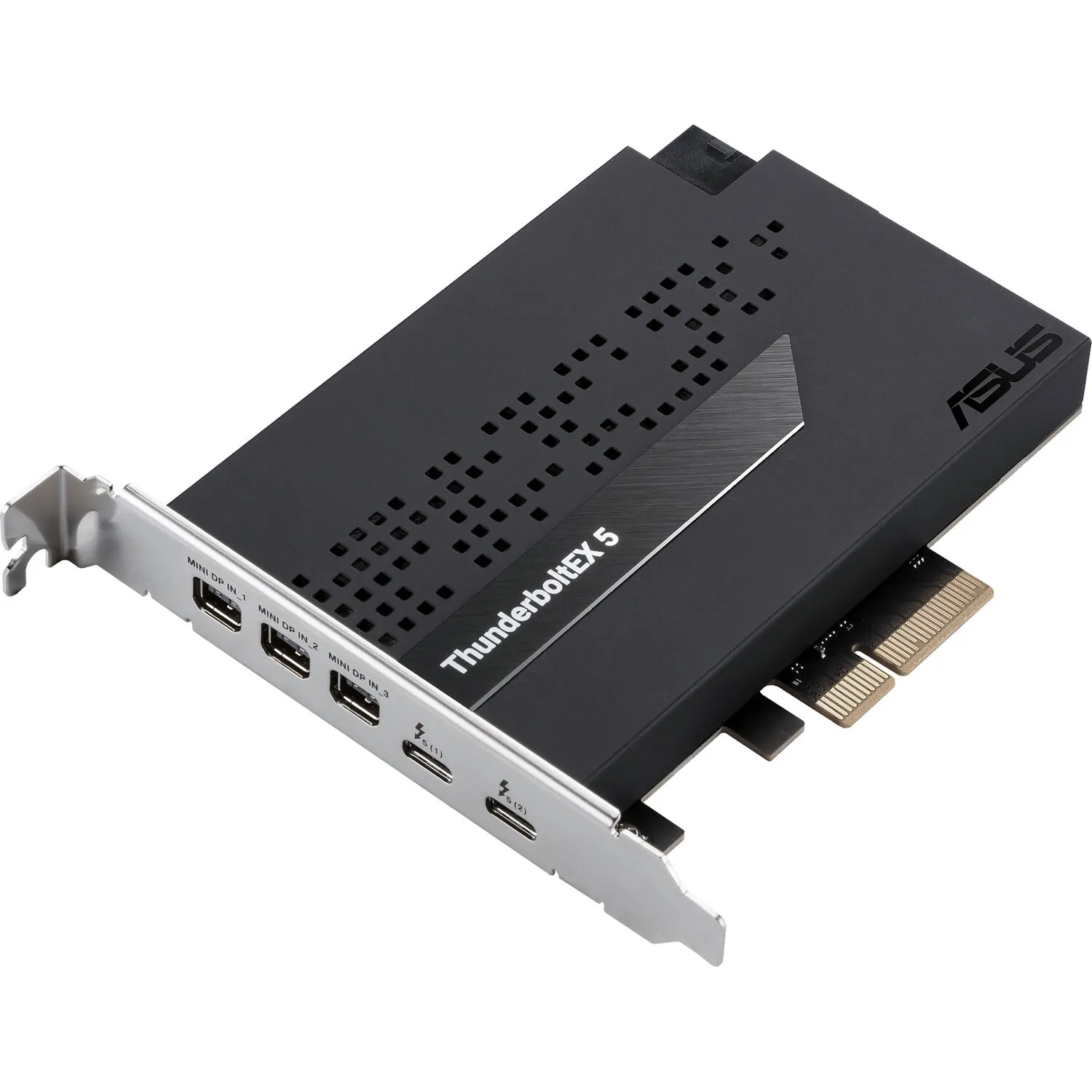

ASUS ThunderboltEX 5 Dual-Port Thunderbolt 5 PCIe 4.0 Expansion Card

Enhance your workflow with high-speed storage devices and 8K displays by installing the ASUS ThunderboltEX 5 Dual-Port Thunderbolt 5 PCIe 4.0 Expansion Card into your compatible desktop computer. Each of the two Thunderbolt 5 ports support up to 120 Gb/s transfers with support for up to five daisy chained devices. It can also provide up to 130W total power delivery with select motherboards.

The ThunderboltEX 5 fits into an available PCIe 4.0 x4 slot while connecting to available Thunderbolt / USB4, USB 2.0, and DisplayPort headers. A 6-pin PCIe power connector links directly to the power supply. Connect the three external Mini DisplayPort In ports to your graphics card using the included cables to support Thunderbolt compatible displays. Supporting DisplayPort 2.1, up to three 7680 x 4320 resolution UHD 8K, 60 Hz display may be connected simultaneously for efficient multitasking. Windows 11 64-bit is required.

Exceptional Speed

Transferring up to 120 Gb/s with compatible devices, Thunderbolt 5 offers 3x the bandwidth of Thunderbolt 4.

Power Delivery

The ThunderboltEX 5 supports a total of 130W Flexible FastCharge, and up to 96W for a single device. Please note that the Flexible FastCharge feature requires a compatible motherboard that's set to s0 mode.

Dual PC Sharing

With Thunderbolt Share, you can connect up to two Thunderbolt compatible computers directly to each other to share screens, peripherals, and files.

One Cable, Multiple Devices

Simplify your setup by daisy chaining up to five devices to each Thunderbolt 5 port. You can configure three devices and two monitors to a port or four devices and a single display.
