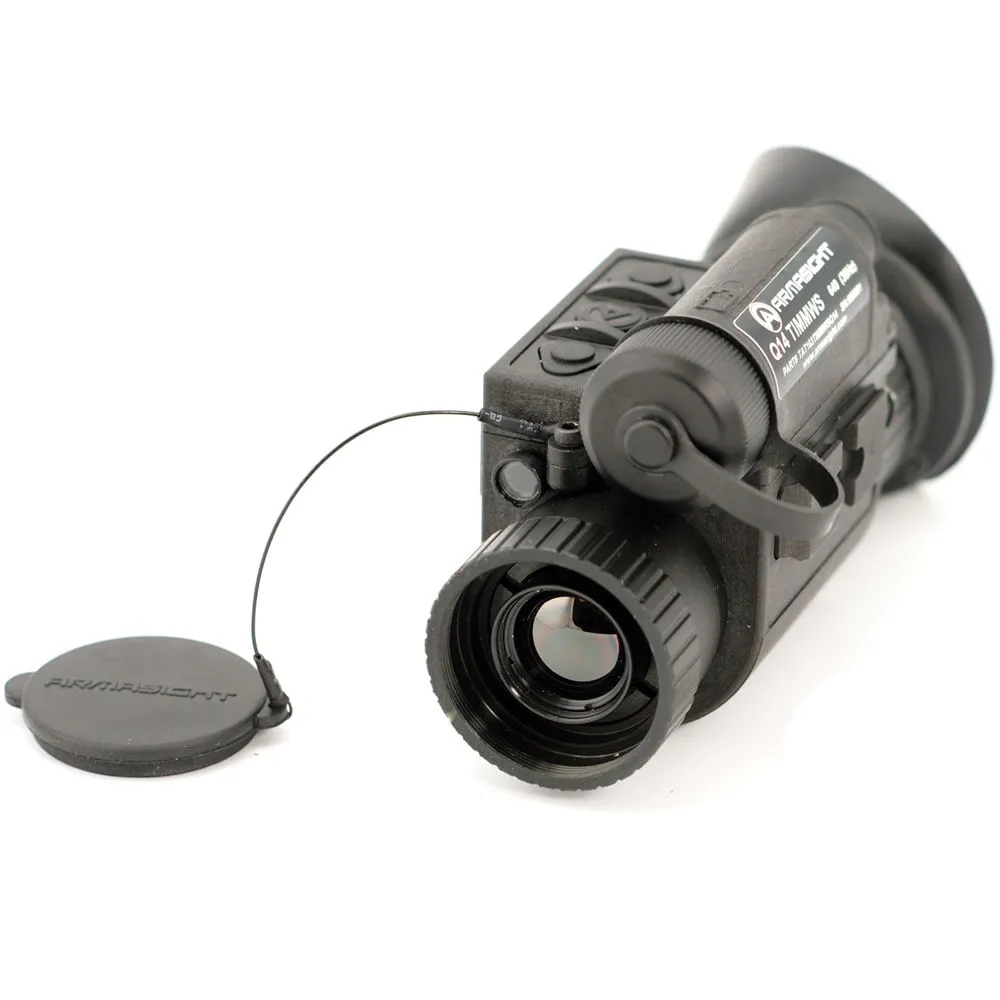

Armasight Q14 TIMM 640 Thermal Imaging Multipurpose Monocular with Headgear (60 Hz)

Combining strength, durability, and light weight of reinforced glass fiber with a compact size, the Q14 TIMM 640 Thermal Imaging Multipurpose Monocular from Armasight is ideal for wearing on a headgear. It features an uncooled 640x512 FLIR Quark microbolometer that allows users to detect sources of invisible to the naked eye long wavelength infrared light during day or night. For example, at night without help from visible illumination you will be able to detect running engines, hot wires, infrared lasers and lamps, live animals, humans, or other sources of heat. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.

You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. Additionally, the included remote control allows for a wireless operation.

The reinforced glass fiber housing is lightweight, durable, waterproof, and submersible to 66' for two hours. To provide a sure operation, all adjustment rings are knurled. Other construction details include a tethered protective objective lens cap and a rubber winged eye guard.

Note:

Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce.

For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce.

Imaging Performance

• Detector: FLIR Quark VOx Microbolometer
• Spectral range: 7-14µm
• Resolution: 640x512 pixels
• Pixel size: 17µm
• Refresh rate: 60 Hz

Optical Performance

• Germanium objective lens
• Lens system: 19mm, f/1.0
• Magnification: 1x
• Digital zoom: up to 8x
• Close focus: 0.8'

Video Capability

• 800x600 AMOLED SVGA 060 color display
• Color modes: White Hot, Black Hot
• Easy and intuitive drop-down user menu
• VGA video output port
• Rapid start-up

Imaging Filter Algorithms

• Active Contrast Enhancement (ACE)
• Smart Scene Optimization (SSO)
• Information Based Histogram Equalization (IBHEQ)
• Digital Detail Enhancement (DDE)
• Silent Shutterless Non-uniformity Correction (SSN)

Use and Handling

• Integrated laser pointer
• Wireless remote control included
• Digital compass
• Digital inclinometer
• Integrated laser pointer

Construction Details

• Reinforced glass fiber housing
• Accessory mounting point on top
• Winged rubber eyeguard
• Mountable on the included headgear or
• Waterproof, submersible to 66'
• Weight 8.5 oz
