Apantac T# 24-Input Modular Multiviewer Frame (2 RU)

This 2 RU T# 24-Input Modular Multiviewer Frame from Apantac is a modular frame that can accept a variety of I/O cards and a total of up to 24 inputs, including HDMI, SDI, SFP, DP, NDI, and IP. It features a passthrough cooling system and built-in dual power supplies.

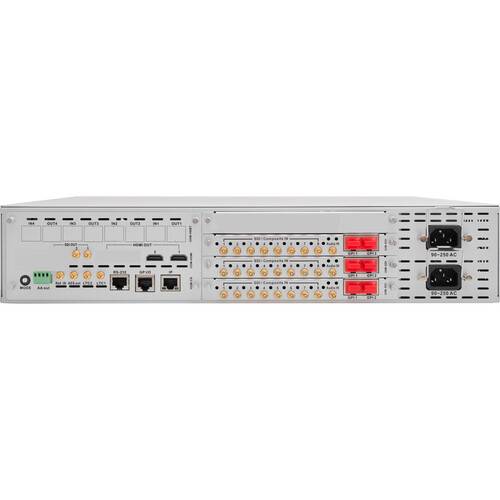

Included with this two-head multiviewer model are three VSM video scaler modules, a UIM-SDI card with eight SDI inputs and eight GPI connections via RJ45, and an OPM-A four-output processing module. Also included is a UOM-H-A four-HDMI and four-SDI output module that also features analog and AES audio monitoring, two LTC inputs, one Genlock port, serial and IP ports, and eight GPIO ports. All inputs can be shared on all four outputs, and the HDMI and SDI I/O support video resolutions up to 1080p60.

Additional Details

• Fast boot-up (<10 seconds)
• Single frame of processing delay on baseband inputs
• Modular architecture
• HDR support for both PQ and HLG (option)
• All input and output boards are hot swappable
• Can support up to 64 windows on each output
• Any input can be routed to any output
• Any input can be duplicated up to 64 times
• Supports UMD, OMD, IMD, and standalone labels up to 32 characters
• Supports Unicode UMD labels, such as Chinese, Japanese, and other double-byte characters
• Supports multiple labels per window
• Supports dynamic UMD via TSL protocol v3.1 (IP and RS-232) or TSL protocol v5.0 (IP)
• Supports two sets of "safe area" markers per image
• Multiple analog and digital clocks per multiviewer outputs that can be locked to LTC or NTP
• Customizable logos
• Supports up to 30 presets per output
• Video audio alarms include video presence/format, video black, video frozen, audio presence, audio high/low
• Supports AXP2 (Apantac eXchange Protocol, version 2)
• Supports 3rd party routers and production switcher protocols
• Hot swappable redundant power supplies

I/O Card Compatibility

• Supports auto-detect inputs from 12G-SDI to HD-SDI
• Supports auto-detect inputs from 3G-SDI to CVBS
• HDMI 1.4 input cards
• HDMI 2.0 input cards
• High-bandwidth NDI cards
• DP 1.2 input cards
• IP (H.264/MPEG4, MPEG2, ASI) input cards
• SFP input cards can accept SMPTE SDI fiber
• Maximum of 64 auto-detect inputs of 3G/HD/SD-SDI and composite signals
• Maximum of 32 auto-detect inputs of 12G/3G/HD-SDI
• Maximum of 64 inputs of HDMI 1.4
• Maximum of 32 inputs of HDMI 2.0
• Maximum of 64 high-bandwidth 1080p inputs
• Maximum of eight 1080p outputs
• Maximum of two UHD 4K outputs
