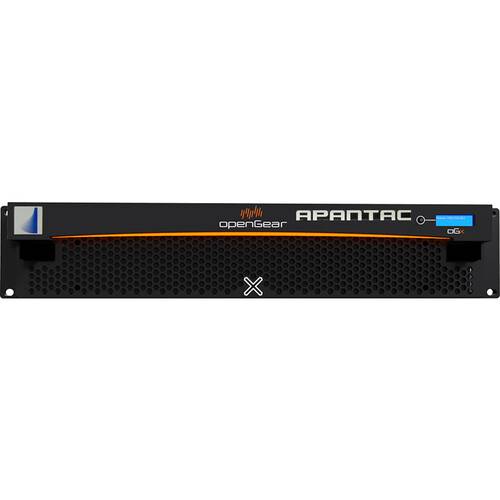

Apantac OG-DL-8+4 openGear-Based Multiviewer

Add this OG-DL-8+4 openGear-Based Multiviewer from Apantac to your broadcast facility for multiviewing HDMI and 3G-SDI video. This compact 2 RU unit features four 3G/HD/SD-SDI inputs with 16-channel audio and eight HDMI inputs, supporting up to 1080p60 and 1200p50 with four channels of embedded audio.

The openGear-based multiviewer unit supports 24 GPI for tally/presets via the RJ45 GPI port, as well as 30 internal presets and the AXP API. SDI and HDMI outputs support multiview resolutions up to 1600 x 1200, 1080p, and 1200p 50/60. The unit supports labeling each multiview window, closed captioning, video black, presence/format, and video frozen alarms. You can choose to purchase an optional PS-OGX additional power supply for redundancy.

Quick Features

• Four 3G/HD/SD-SDI inputs and eight HDMI inputs
• Single frame of processing delay
• Decode and display up to 16 channels of SDI embedded audio
• Decode and display up to four channels of HDMI embedded audio
• HDMI and SDI output resolution up to 1920 x 1080p60
• Multiple labels per video windows: UMD, IMD, OMD, and standalone labels
• Decodes closed captioning on line 21, 608/708 on SDI
• 24 GPI for tally/presets
• Video presence/format, video black, video frozen alarms
• Audio presence, audio high/low alarms
• 2 RU rackmount form factor
• Optional redundant power supply PS-OGX
