Apantac 4K Bidirectional Universal Scaler with Genlock OG-US-5000-MB with Rear Module Bundle

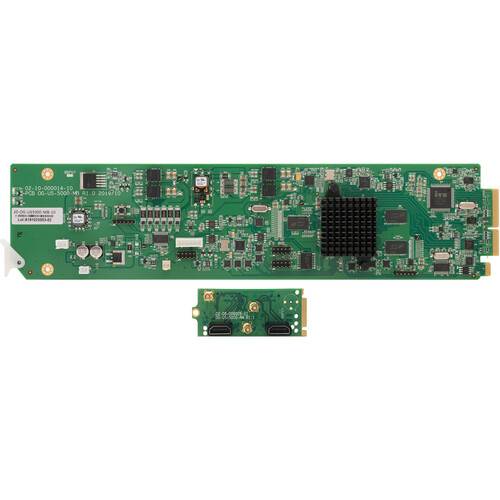

Convert and scale video using the openGear framework with this 4K Bidirectional Universal Scaler with Genlock OG-US-5000-MB with Rear Module Bundle from Apantac. This bundle includes the main scaler OGX card and a rear module that are compatible with an openGear OGX-FR-CN-P frame.

The rear module features one HDMI input, one HDMI output, one 12G-SDI input, one 12G-SDI output, and a Genlock connector. The card features low power consumption, HDMI to 12G-SDI conversion, HDR metadata passthrough, scaling resolutions up to DCI 4K 4096 x 2160p60, and it supports up to 8 channels of audio I/O. The scaler card is enabled for openGear Dashboard control.

Features

• openGear OGX card-based form factor
• Dashboard control enabled
• HDR metadata passthrough
• Select input among HDMI 2.0 and SDI up to 4096 x 2160p60 or test signal
• HDMI 2.0 and 12G-SDI outputs up to 4096 x 2160p60, with independently adjustable resolution / frame rate
• Supports 8 channels of HDMI audio to SDI and vice versa
• Supports 8 channels of audio when converting from SDI to SDI
• Supports Genlock via openGear frame
• Supports SDI and HDMI
• Region of Interest (ROI) support.
• In ROI mode, the HDMI output matches the SDI output resolution
• Low power consumption
