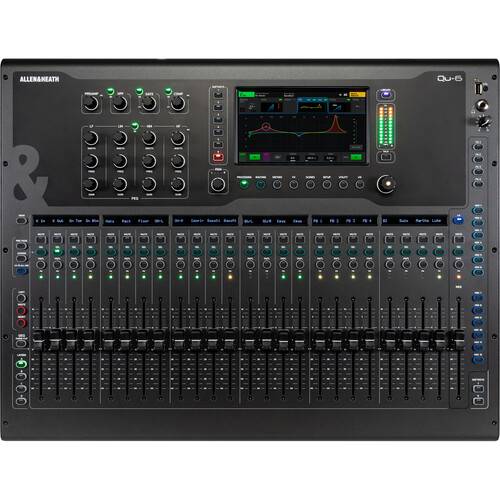

Allen & Heath Qu-6 36-Channel / 12-Bus Digital Mixer with 24+1 Motorized Faders

Borrowing heavily from the popular Qu series, the Allen & Heath Qu-6 is a professional-grade digital mixer with powerful XCVI processing, updated FX, and Everything I/O connectivity. There's also a 7" capacitive touchscreen, channel strip displays, customizable layers, extra SoftKeys, and SD-card recording.

The Qu-6 offers a channel count of 32 mono and two stereo channels for a total of 36 inputs, 6 mono/linkable, and 6 stereo aux/group. The mixer combines high performance audio processing and professional features with ease of use and hands-on control.

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio

• Updated microphone preamps and high-performance 96 kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control

• Every channel now features a channel display, showing channel name, channel type, or socket number, a chromatic channel meter for at-a-glance level information, and a new touchscreen that accommodates a completely redesigned user interface.

Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, for every application.

The original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analog world. The new Qu takes this further, maintaining a focus on walk-up-and-mix usability while adding 4 fully customizable layers, more assignable SoftKeys for workflow optimization, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.

Thanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix and match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128x128 channels of 96 kHz audio available for patching.

Qu is now DEEP Processing ready, bringing acclaimed add-ons from Allen & Heath's flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series, to take the stress out of setup and speed up your soundchecks.

Gain Assistant for Faster Setups

• Adjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.
• Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.

Feedback Assistant

• Qu’s easy-to-use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.

Add-Ons to Take Your Mix to the Next Level

• Proven on countless world-tours with international artists, DEEP Processing and RackExtra FX from our award-winning dLive digital mixing system are now available within your Qu.

Automatic Mic Mixer

• Qu’s 32 channel Automatic Mic Mixer (AMM) makes it the perfect choice for mixing conferences, panel talks, and TV shows. It’s fully integrated in the mixer, with no extra latency, so you don’t need to route the audio to an internal DSP rack or external plug-in system.

Qu-MixPad

• Qu-MixPad is an engineer’s live mixing tool.

Qu4You

• Musician’s Mixing App for Qu.

Processing and FX

• 96 kHz XCVI core
• 6 multi-FX engines with dedicated stereo returns
• DEEP processing ready

Mix Architecture

• 38 inputs to mix (32 mono/linkable, 3x stereo)
• 12 mixes (6 mono/linkable aux/group, 6 stereo aux/group)
• 4 mono/linkable matrix
• Stereo main L/R output

• 24 combi XLR-1/4" mic/line input sockets
• 2 stereo line input sockets (each 2 x 1/4" TRS)
• 16 XLR output sockets
• 1 XLR talkback socket
• 2 TRS output sockets
• 1 AES3 stereo digital output socket
• 128×128 intelligent SLink port for everything I/O expansion and system connections

• Stereo headphone output

• 7” capacitive touchscreen
• 25 x 100mm motorized faders
• 4 channel strip layers
• Remote control via free apps—Windows/MacOS/iOS/Android
• 8 soft keys
• Configurable single/dual footswitch connection

• USB-A for stereo audio record/playback and data transfer
• USB-C audio interface for multichannel record/playback (32x32)
• SD-card slot for multichannel audio recording or playback (16x16 at 96 kHz, 32x32 at 48 kHz)

• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED’s

EAN: 5056756902049
