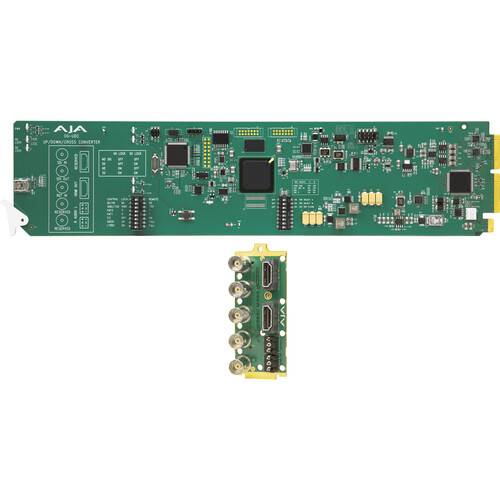

AJA OG-UDC 3G-SDI Up, Down, Cross-Converter Card with DashBoard Support

The OG-UDC 3G-SDI Up, Down, Cross-Converter Card with DashBoard Support from AJA is an openGear-compatible card that performs up, down, and cross-conversion on SD, HD, and 3G-SDI formats. Designed for use in 2 RU, high-density openGear frames, the OG-UDC is controlled by DashBoard network control software supported by Windows, macOS, and Linux operating systems.

The OG-UDC offers a 3G-SDI input and output, an HDMI output, and two 3-pin terminal block connectors for stereo analog audio output. Up to 16 channels of audio can be embedded on the 3G-SDI input and output, while the HDMI output can handle up to eight channels of embedded digital audio. AJA conversion technology ensures high image quality with resolutions up to 1080p50/60.

Please note: OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported. OG-UDC passes through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

Key Features

• openGear compatibility
• Converts between SD, HD, and 3G HD formats
• Supports 1080p50/60
• Controlled by DashBoard network control software and external DIP switch
• 2 x 3-Pin terminal block connectors included
• 16-channel embedded SDI audio input and output
• 8-channel embedded audio on HDMI out
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
