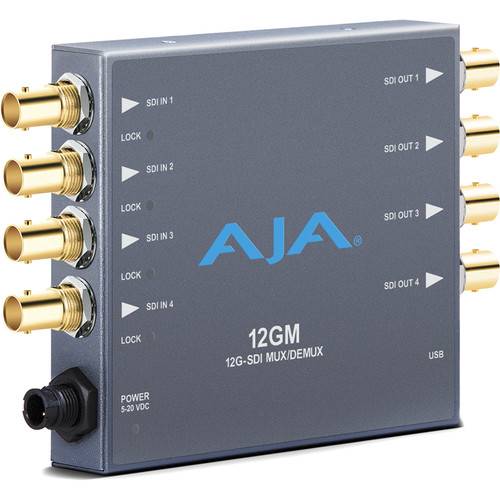

AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer

AJA's 12GM is an SDI standard converter. Resolutions up to DCI 4K are supported, so Quad 3G-SDI can be converted into 12G and vice-versa. Multi-link signals can now be combined to run over fewer cables, and newer standards can now be backward compatible with legacy SDI gear. All signals are re-clocked and amplified to ensure signal integrity over long cable runs.

Compact 12G to/from 3G conversion

SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs

Converts SMPTE 425M A to/from SMPTE 425M B

Fully equalizing and reclocking with jitter attenuation

If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M

DWP-U-R1 power supply included
