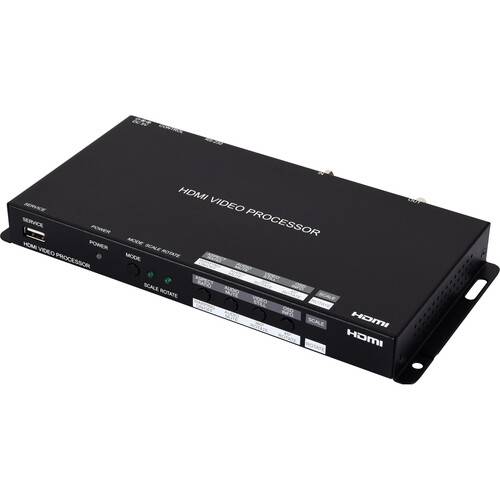

A-Neuvideo HDMI Video Wall Rotation Processor

Rotate, scale, and adjust the angle and resolution of your HDMI video for output on a video wall, in a control room, or a classroom using this HDMI Video Wall Rotation Processor from A-Neuvideo. The unit features one HDMI 1.3 input and one HDMI 1.3 output and supports up to 1080p60 video and 192 kHz LPCM audio pass-through.

Configure the processor using the front buttons, via telnet, via RS-232, or by using the A-Neuvideo Video Wall software for Windows to scale, rotate, mirror, flip, or freeze the image for output. Use separately available splitters or a video matrix to distribute the video source to a larger video wall with less than 2 frames of video latency.

Video Support

• One HDMI input and one HDMI output support HD resolutions up to 1080p60
• HDMI 1.3 and HDCP 1.4 compliant
• Only 1 to 2 frames of video latency
• Rotation mode supports horizontal/vertical video warping with zooming in/out and 360° display rotation in 1° increments
• Scaler mode includes video mirror, flip, and freeze
• Contrast, brightness, hue, sharpness, aspect ratio

Audio Support

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream

Management

• Custom EDID management
• Basic control of the unit is provided by front-panel controls with an informational display
• Control the unit via Telnet, RS-232, or the A-Neuvideo Video Wall PC software
